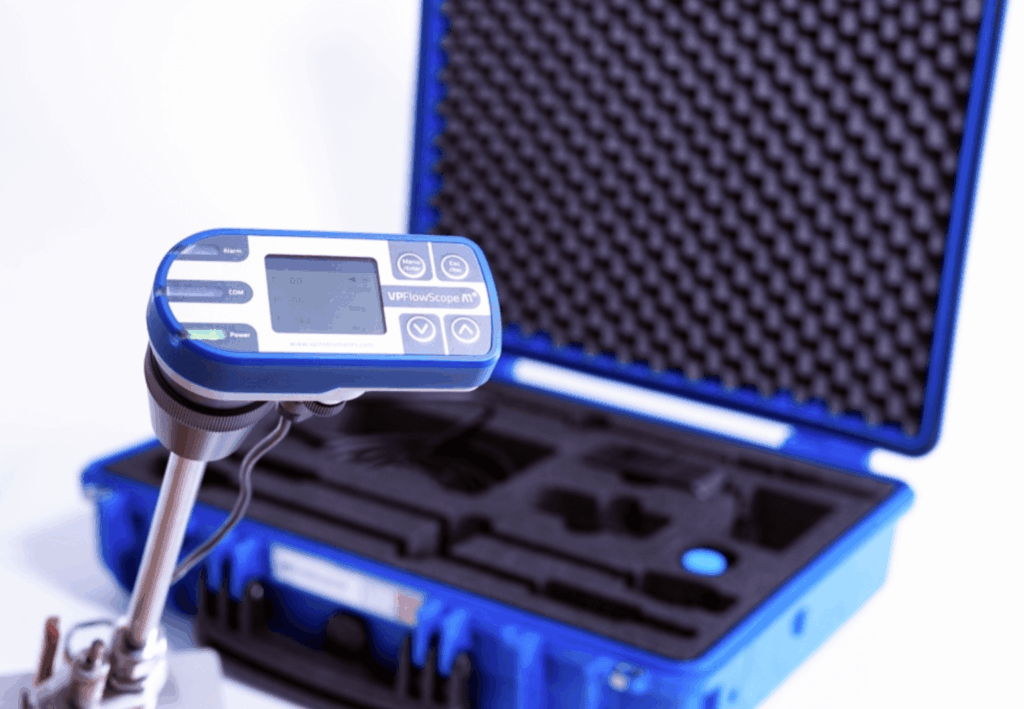

VPFlowScope M Start Kit
The VPFlowScope M is a 4-in-1 insertion flow meter for compressed air and technical gases. It can be installed under pressure and measures bi-directional flow, pressure, temperature, totalized flow simultaneously.
It is the next step in gas measurement. You are industry 4.0 ready, with the additional Ethernet output. With the VPFlowScope M re-calibration is history: simply exchange the unique VPSensorCartridge!
This VPFlowScope M start kit offers all you need to start measuring today, including the Transmitter with built-in data logger, cables, and software. Start measuring today with the plug and play start kit!
- Four sensors in one instrument: flow, pressure, temperature, and totalized flow measurement
- For compressed air and technical gases
- VPSensorCartridge®: no more recalibration required
- Ethernet interface: Industry 4.0/IOT ready
- Ultra-compact size and low weight
- Ethernet (Modbus/ TCP)
- RS485 (Modbus RTU)
- 4..20 mA linearized, pulse mode or alarm output
- USB interface for configuration and downloading of data log files
- Optional TFT display
- Optional data logger
- Optional: Bi-directional
- Demand-side compressed air monitoring
- Air audits
- Submetering of compressed air
- Ring networks (bi-directional)
- Industrial gas monitoring (air, nitrogen, carbon dioxide, argon and other dry, noncorrosive industrial gases)
- Cost allocation
- Leak detection
- VPFlowScope M Transmitter with display + data logger (1 year @ 1 second interval)
- VPSensorCartridge P350 (0..150 mn/sec, 0..10 bar, 0..60 deg C)
- Bi-directional option
- Mini USB cable
- 24V Power supply
- Compression fitting with proprietary, adjustable safety cable
- Cable 5m/16.4ft for ethernet with 4-pin M12 and RJ45 connector
- Rugged blue explorer case
- ISO Calibration report
- English user manual
- VPStudio 2.0 software
For comprehensive measurement capabilities, add the VPSensorCartridge P220 for pipe diameters of 1″ up to 3″ to your Start Kit.
| Display | Included |
| Data logger | 365 days @ 1 second interval |
| Outputs | RS485 (Modbus RTU) | 4 … 20 mA output or pulse or alarm | Mini USB, behind sealed cap (for configuration | Ethernet |
| Dimensions | 50 x 108 x 36 mm | 1.97 x 4.25 x 1.42 inch |
| Weight | 220 grams | 7.76 ounces |
| Protection grade | IP65 | NEMA 4 when mated to VPSensorCartridge |
| Power supply | 12 VDC … 24 VDC +10% Class 2 (UL) |
| Power Consumption | 1 Watt (no flow) 3.5 Watt (full flow) +/- 10% | Varies per VPSensorcartridge type and transmitter type |
| Approvals | EN 60950-1, EN 61326-1, EN 61000-3-2, EN 61000-3-3, EN 61326-1, UL 508 |
Download VPStudio from the software webpage. Click here.
With VPStudio you can configure and readout your flow meter, including readout and download of your data log sessions.
