VPS DP
VPFlowScope DP flow meter

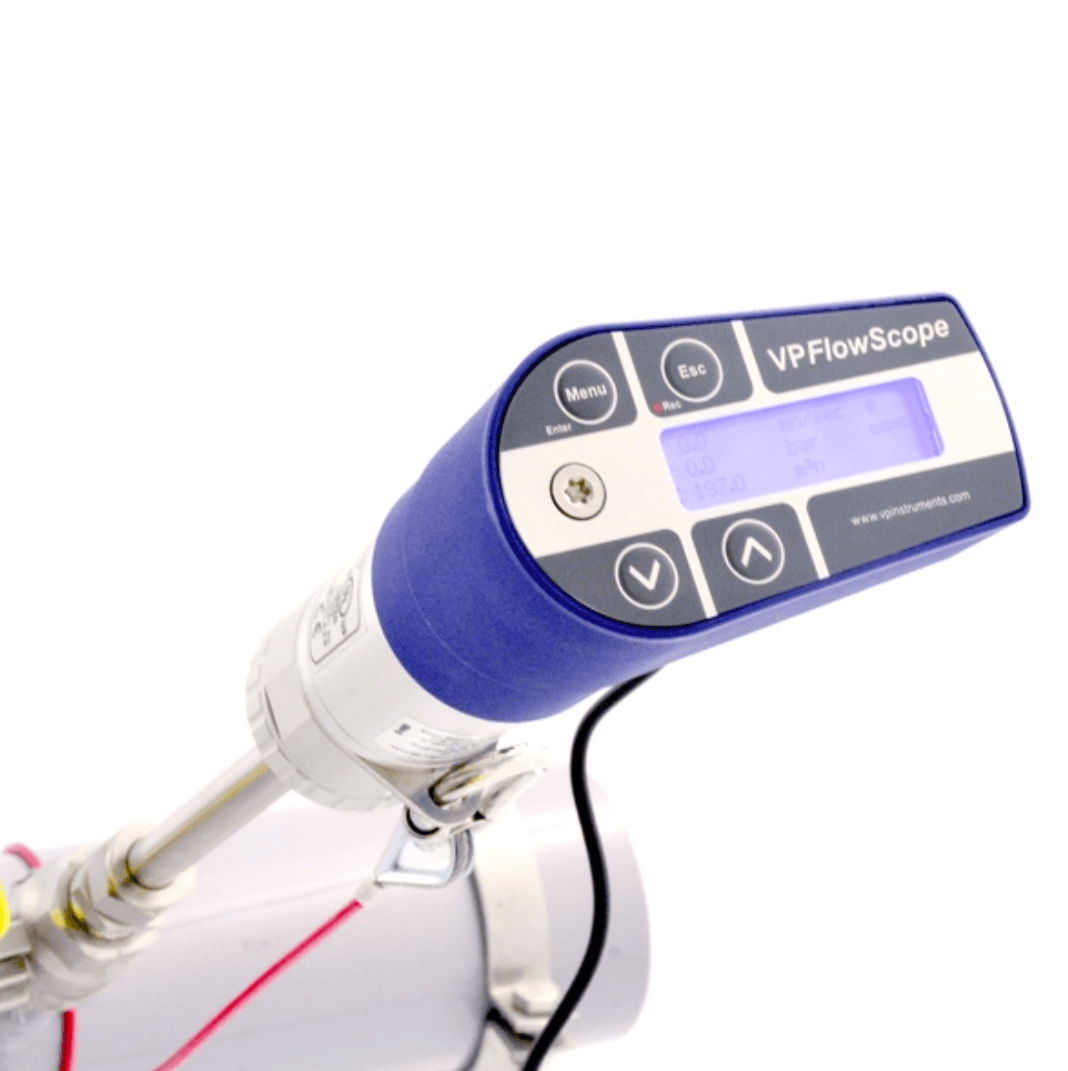

The VPFlowScope® DP is the ultimate measurement tool for saturated compressed air flow measurements. The unique design enables you to take measurements in the discharge pipe of a compressor under 100% saturated conditions. You can combine the probe with two display module types or with a connector cap without display.

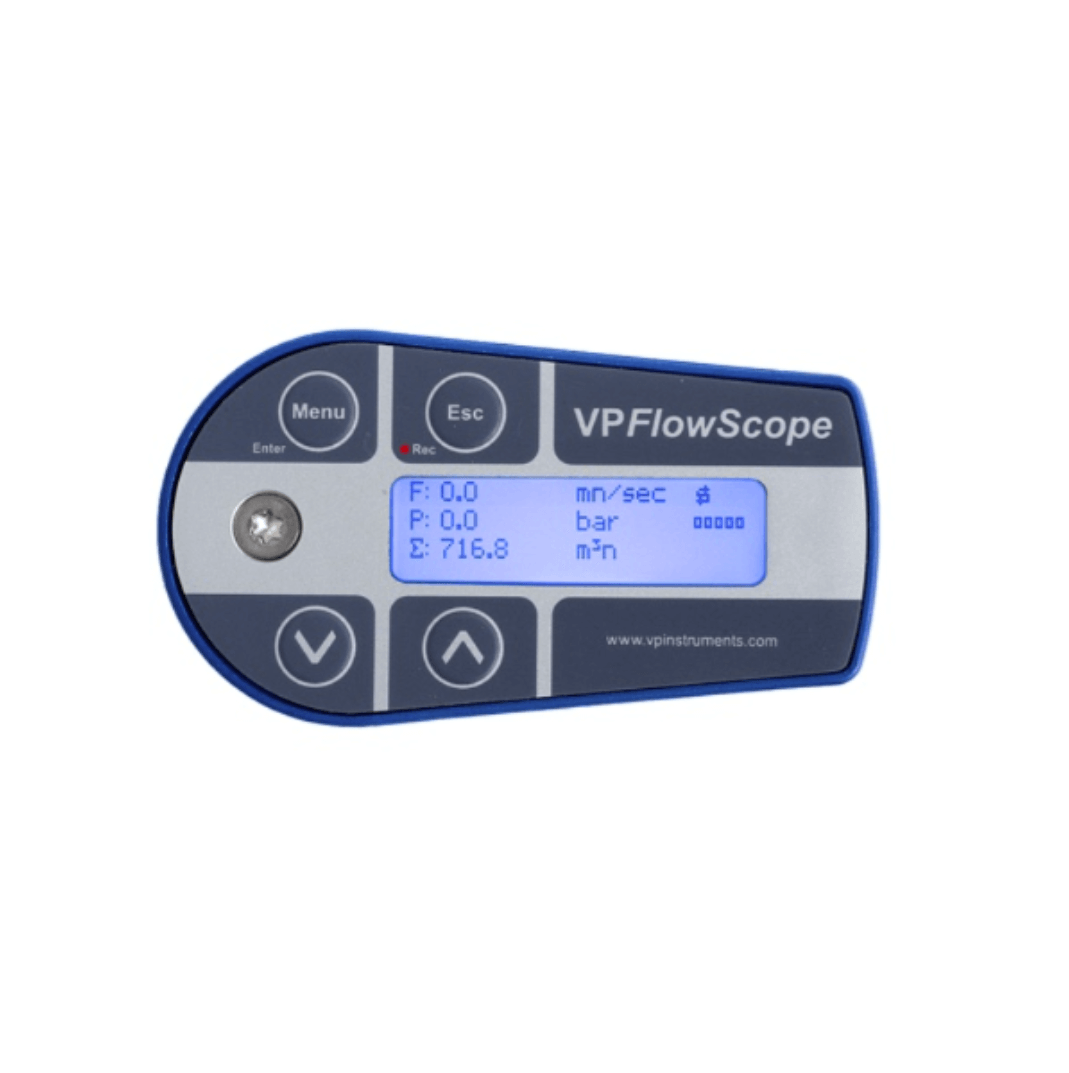

The VPFlowScope® DP flow meter measures mass flow, temperature and pressure simultaneously and is optimized for hot, saturated compressed air measurements. The design of this differential pressure flow meter for wet air has a bright blue LCD display which provides real-time information of the dP measurement. In combination with the built-in data logger this enables you to make recordings for certain periods of time. In turn, you can use our VPStudio software to process this data and print reports for real-time measurements.
- For saturated compressed air
- For hot compressed air
- Four sensors in one instrument
- Standard Modbus and 4 … 20 mA
- Bi-directional flow measurements
- Air audits

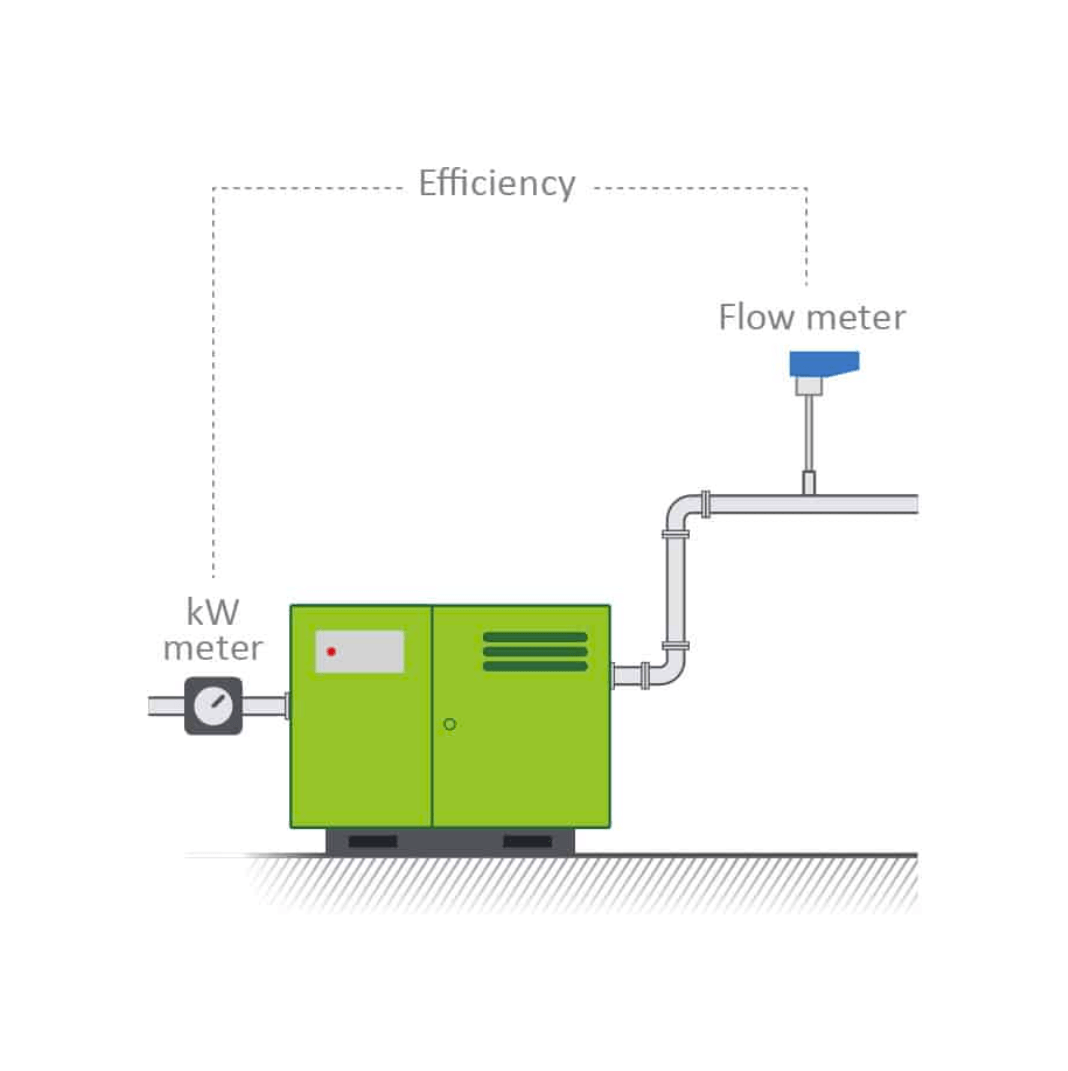

- Compressor efficiency monitoring
- Air treatment equipment (drier/filter) monitoring

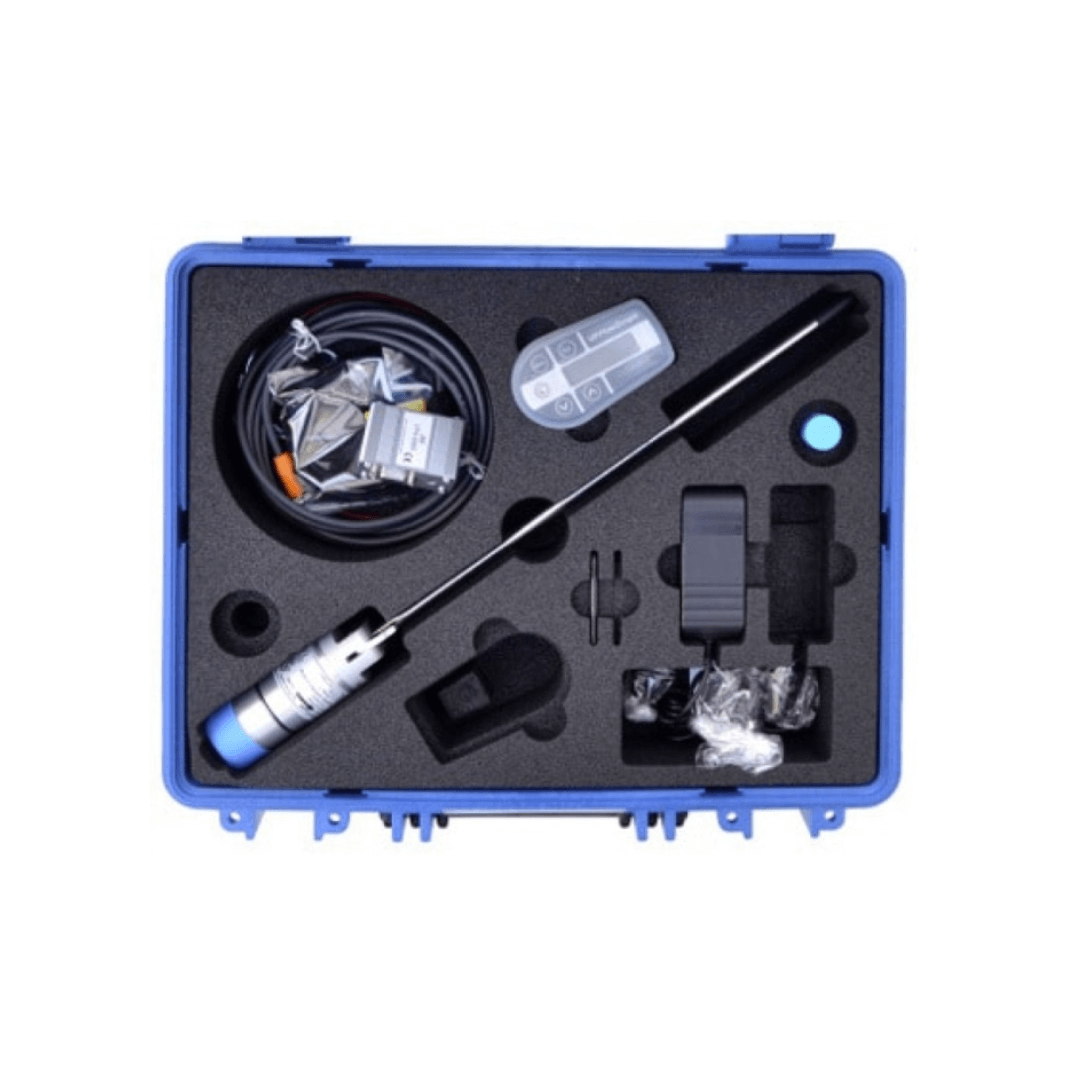

One-stop shopping: VPFlowScope DP start kit
VPInstruments offers a VPFlowScope DP flow meter start kit; an entire set of everything you need to get started immediately for a very affordable price. You don’t have to worry about ordering everything separately or to gather everything you need in order to do an audit or an installation. You just order the kit and away you go.
It includes:
- The VPFlowScope DP Probe
- A three-row LCD display with 2.000.000 data points data logger
- Flow direction sensitivity
- A rugged explorer case
- An interface box JB5 with 5m / 16,4 ft cable (M12 connector) + 12V power supply
- An RS485 to USB cable
- A compression fitting with Teflon ferrule
- A safety cable
- A calibration report
- An English user manual
- VPStudio software
| Flow | 20 … 200 mn/sec |65 … 650 sfps |
| Bi-directional | Standard |
| Pressure | 0 … 16 bar | 0 … 250 psi gauge |
| Temperature | -40 … 150 °C | -40 … 302 °F. Icing should be avoided |
| Gas types | Wet compressed air, dry compressed air, nitrogen and inert gases |
| Output | RS485 (Modbus RTU) digital | 4 … 20 mA analog |
| Probe length | 400 mm | 15″ |
| Power supply | 12 … 24 VDC |
| Approvals | CE, UL/CUL |

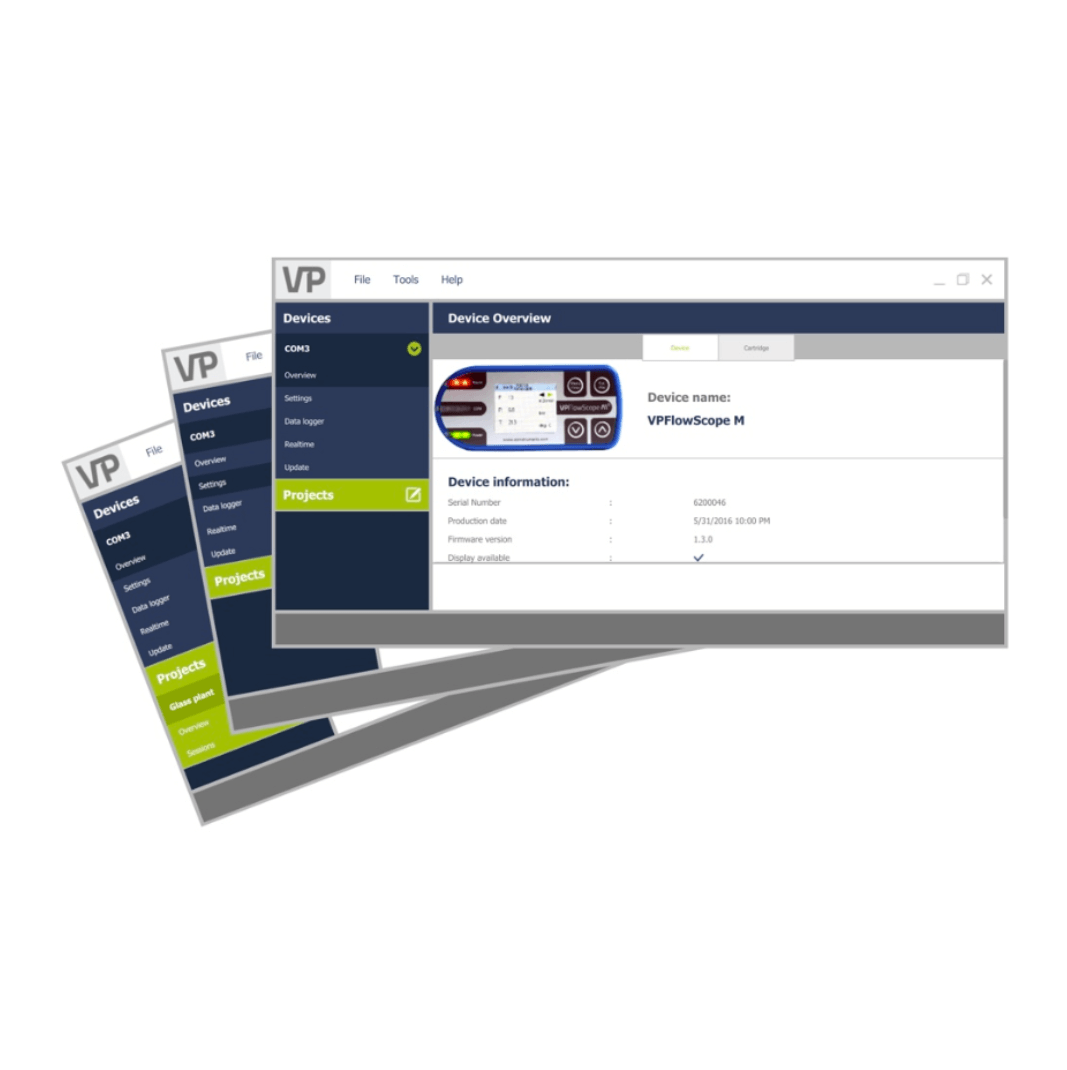

Download VPStudio from the software webpage. Click here.
With VPStudio you can configure and readout your flow meter, including readout and download of your data log sessions.
