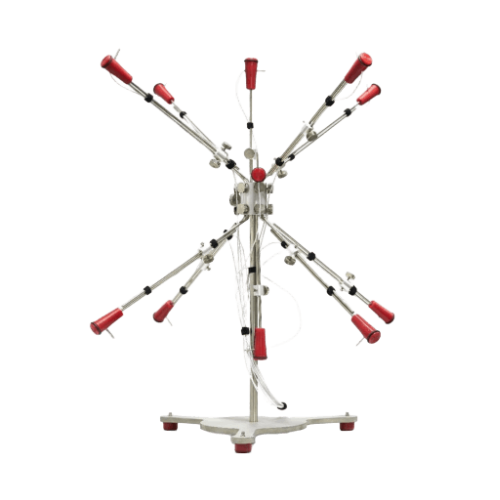

Concept:
The Spider facilitates flexible positioning of temperature sensors in climatic
chambers. It simplifies the setup of chamber temperature tests, calibration and
validation. It features eleven (11) sensor mounts made from flexible and insulating
Silicone that isolates the temperature sensor from stainless-steel mounting rods.

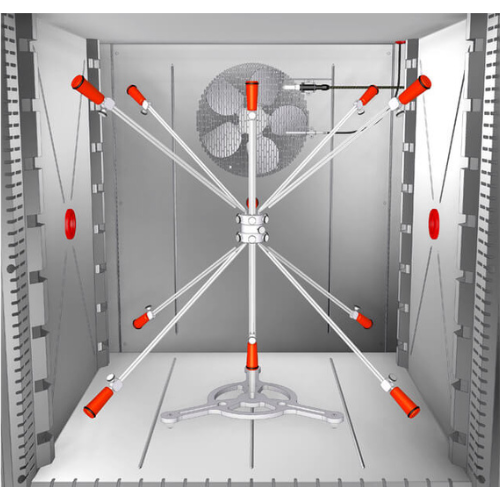

The mounting rods are configured so that the user can position the temperature
sensors in the top and bottom corners (8), as well as bottom, middle and top of the
center line of the chamber. This configuration meets the requirements of climatic
testing standards and guidelines such as EURAMET/cg/20, IEC60068, DKD-R 5-7
and NF X 15-140.

Compatibility:
The Spider is suitable for
temperature sensors from 3 to
6mm in diameter, and working
temperatures from - 50 to + 200
°C. It is suitable for use with any
type of multichannel temperature
measurement systems including
the MBW T12 multichannel
thermometer.
