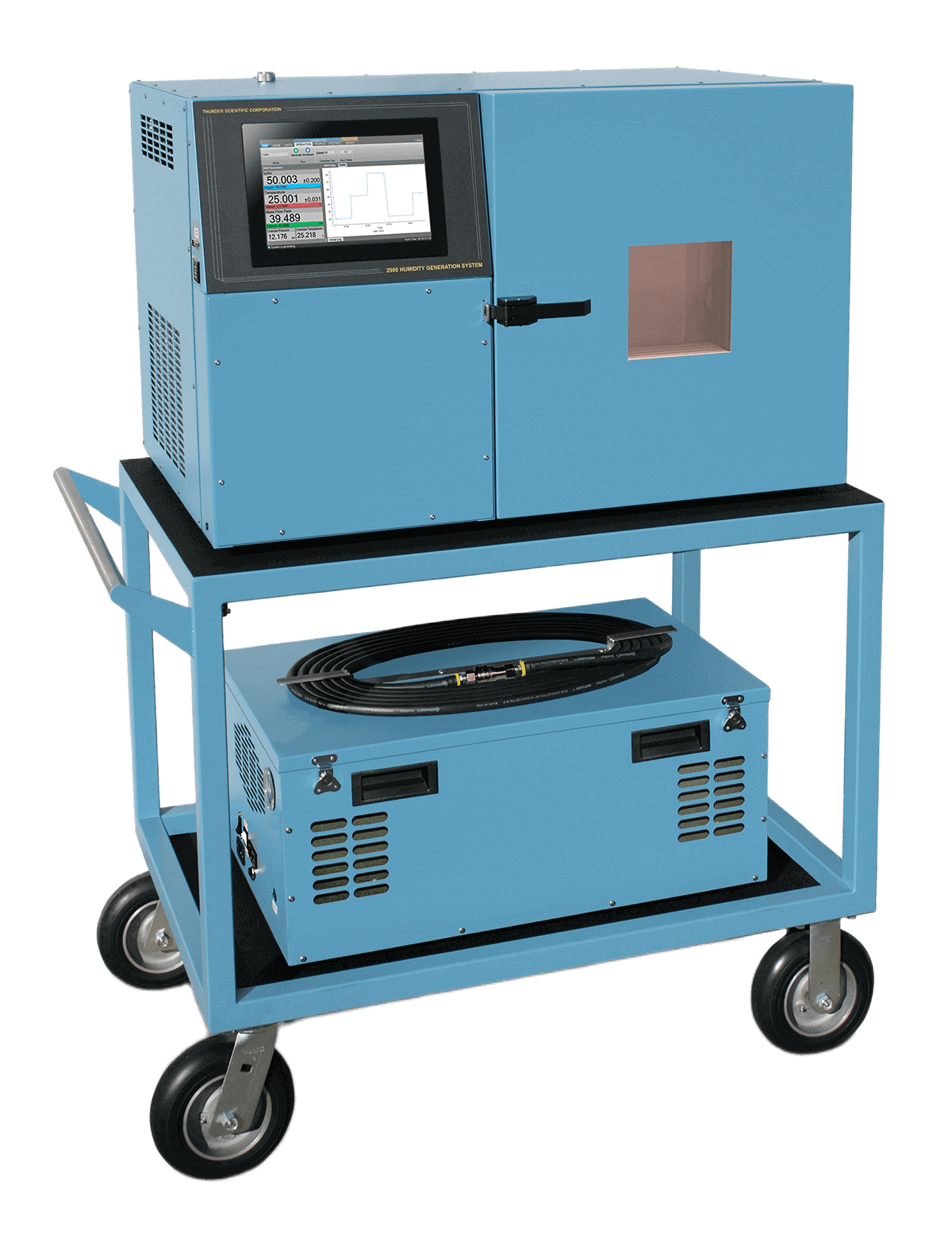

2900-full-system-photo-500x640

Model 2900

Automated “Two-Pressure” Humidity Generation System

The Model 2900 Humidity Generation System is a self-contained system capable of producing atmospheres of known humidity using the fundamental “two-pressure” principle. This system is capable of continuously supplying relative humidity, dew point, frost point, parts per million, or other calculated values for instrument calibration and evaluation as well as for precision environmental testing. This system will automatically generate manually entered humidity and temperature set points as well as user created multipoint profiles. All desired humidities, temperatures, flow rates, and time intervals may be programmed.

Features
Specifications
Downloads

FEATURES

  • Traceable to SI 1
  • 0.5% of Reading RH Uncertainty 6
  • High Flow Capability of 50 L/min
  • Based on NIST Proven "Two-Pressure" Principle
  • HumiCalc® with Uncertainty Mathematical Engine
  • ControLog® Embedded Automation Software
  • Generate: RH, DP, FP, PPM, Multipoint Profiles
  • Externally Driven Chamber Fan
  • 10.1" Multi-point Touch LCD
  • Fluid Jacketed Chamber Door
  • Window Chamber Door Option Available

Relative Humidity Range:10 to 95 %RH, 10 to 40 L/min
Relative Humidity Range: 295 to 98 %RH, 10 to 20 L/min
Frost Point Temperature Range:–33.60 to 0 °C
Dew Point Temperature Range:–36.94 to 70 °C
Chamber Fluid Temperature Range: 3–10 to 72 °C
Chamber Fluid Temperature Control Stability: 40.002 °C
Chamber Temperature Uniformity: 5< 0.04 °C
Chamber Fluid Temperature Heating Rate: from –10 to 72 °C0.5 °C per Minute (average)
Chamber Fluid Temperature Cooling Rate: from 72 to 0 °C0.5 °C per Minute (average)
Chamber Fluid Temperature Cooling Rate: from 0 to –10 °C0.2 °C per Minute (average)
Temperature Specification:0.027 °C
Gas Type:Air or Nitrogen
Gas Pressure Rating: (MAWP)175 psiG
Gas Flow Rate Range:10 to 50 L/min
Gas Flow Rate Specification:5% of full scale
Saturation Pressure Range:Ambient to 160 psiA
Saturation Pressure Specification:0.02% of full scale
Test Chamber Pressure Range:Ambient
Test Chamber Pressure Specification:0.02% of reading
Supply Pressure Range:Ambient to 150 psiG
Supply Pressure Specification:±1 psiG
Display Resolution:1E-3
Test Chamber Dimensions:12" H x 12" W x 10" D (30.48 cm x 30.48 cm x 25.4 cm)
Physical Dimensions:22" H x 36" W x 23" D (55.88 cm x 91.44 cm x 58.42 cm)
Access Port:2 @ Ø1.875" (47.6 mm) located on right side
