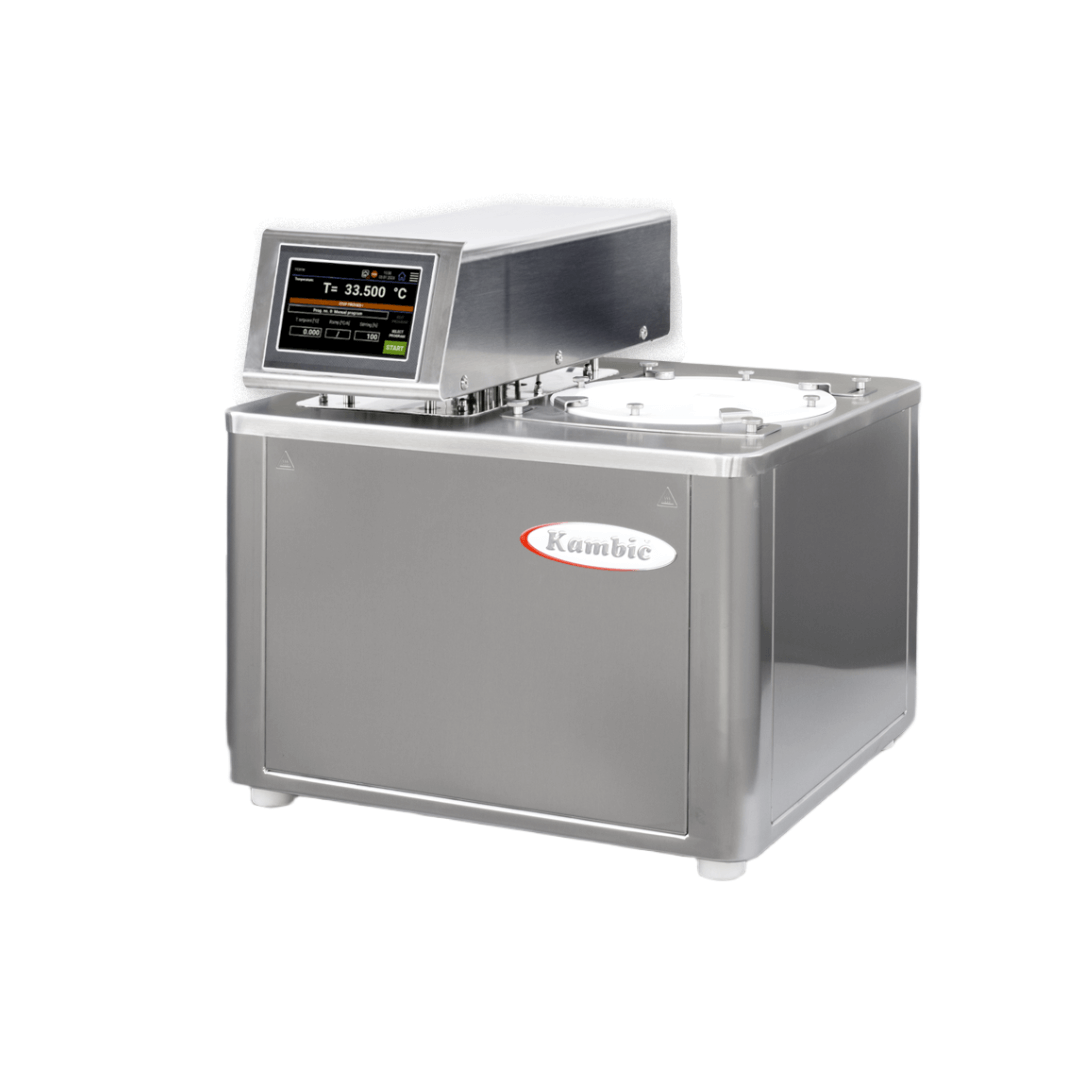

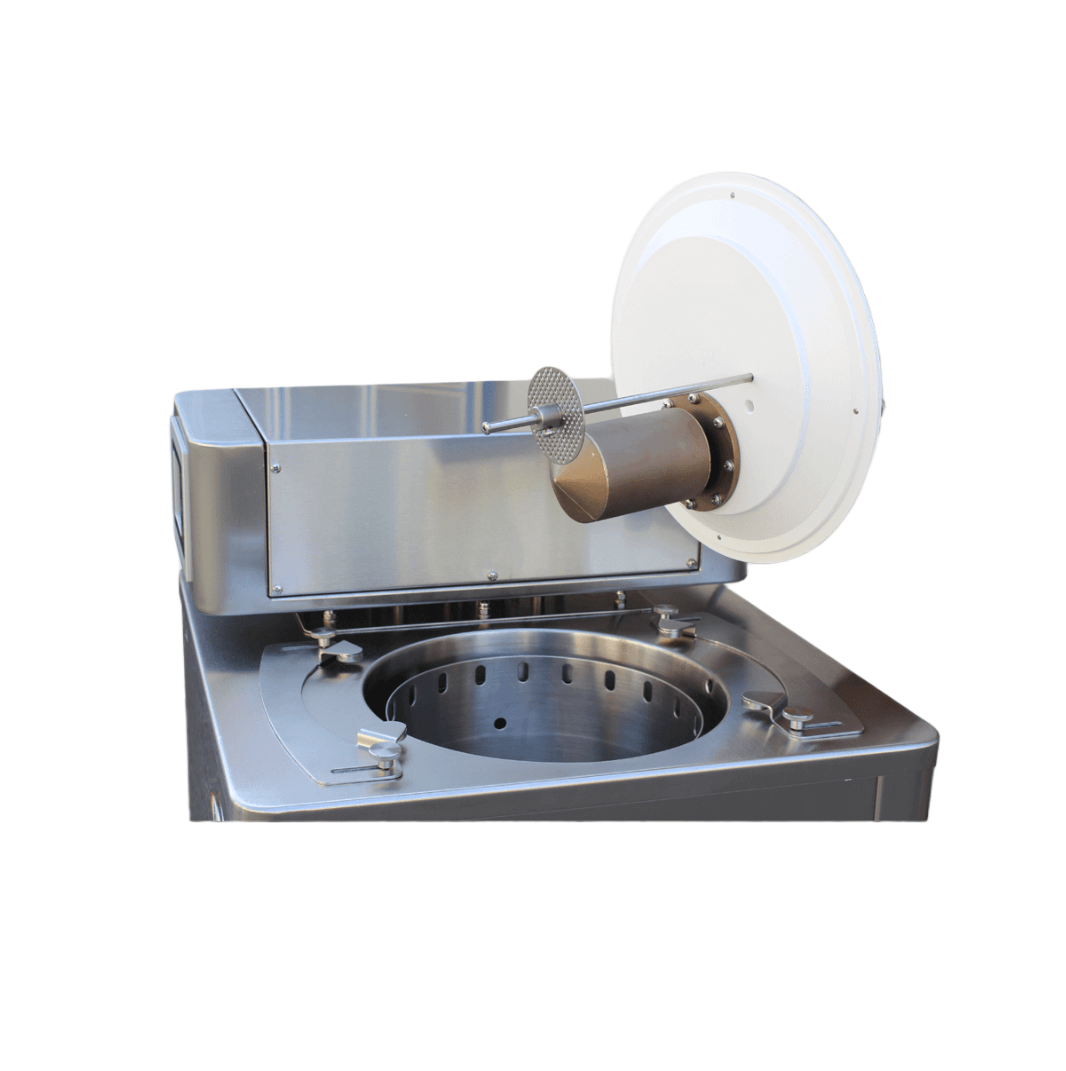

Black Body Cavity Ready Calibration Baths
Non Contact Thermometer Calibrator
OB-15/2 BBC
Temperature range: – 20 °C …+ 250 °C
| Perfect solution for calibrating IR thermometers and other thermographic equipment |

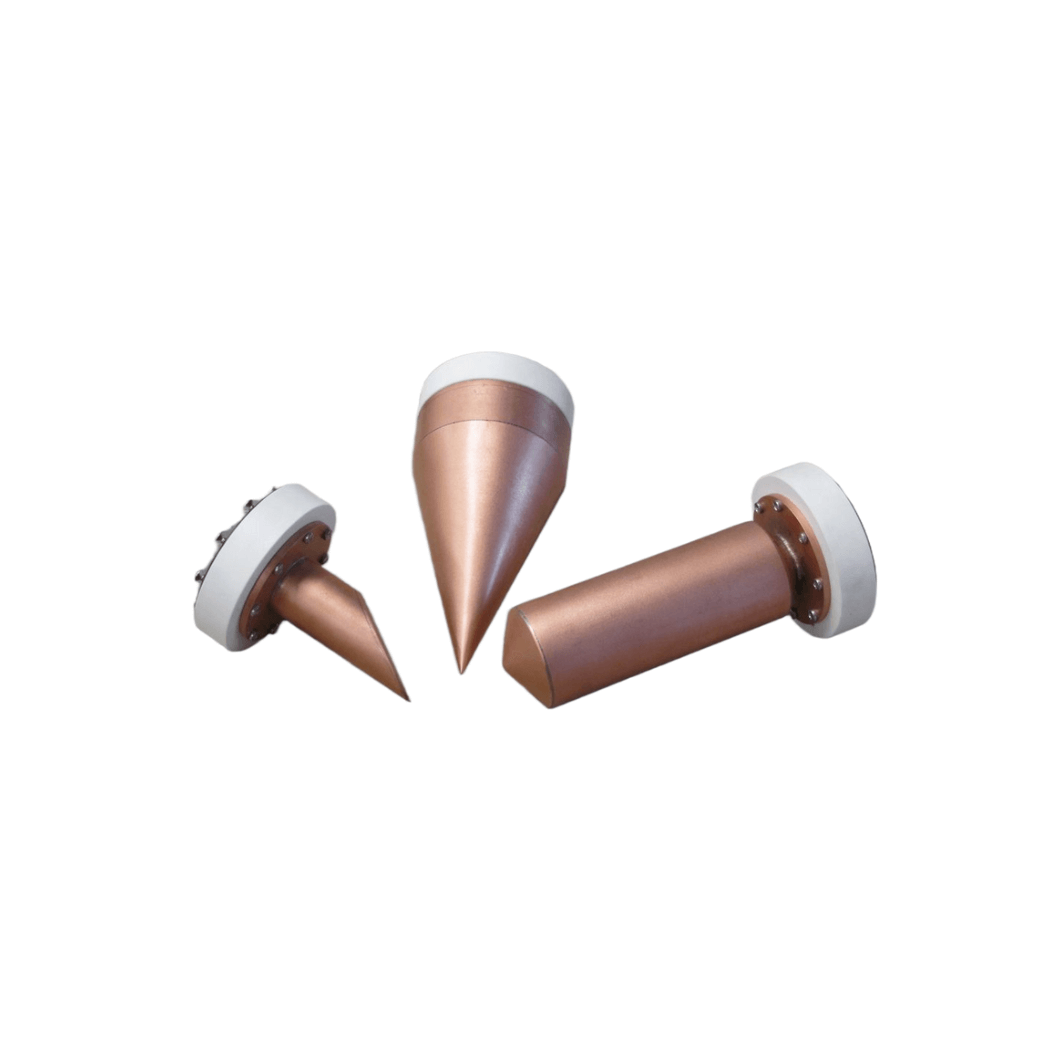

| Various shapes Black Body Cavities available |
| Uniformity and stability in mK range |
| Fluid ensures perfect heat transfer |
| Unique vertical flow design |
| Metrology performance |
| Two temperature ranges available |
| State of the art solution |

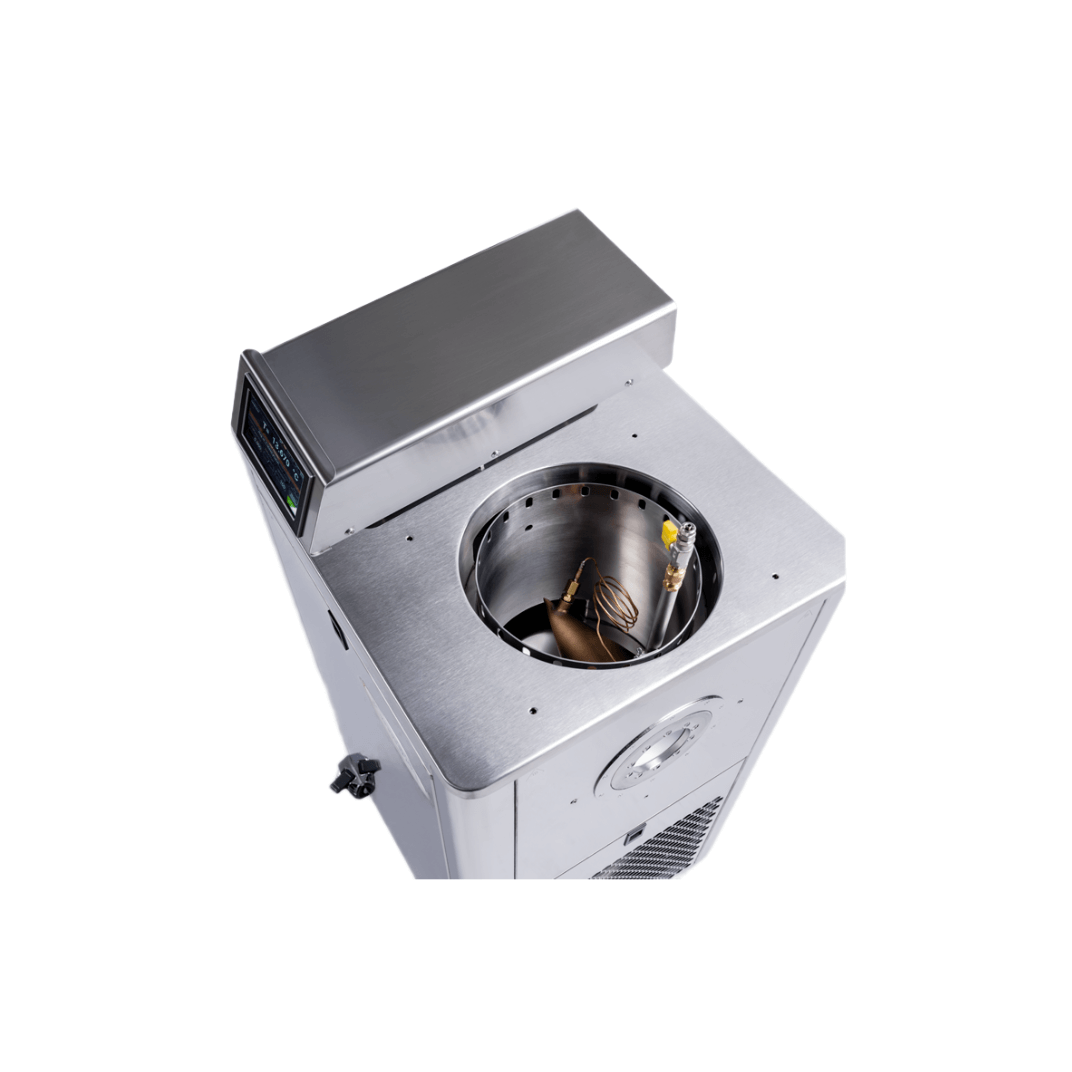

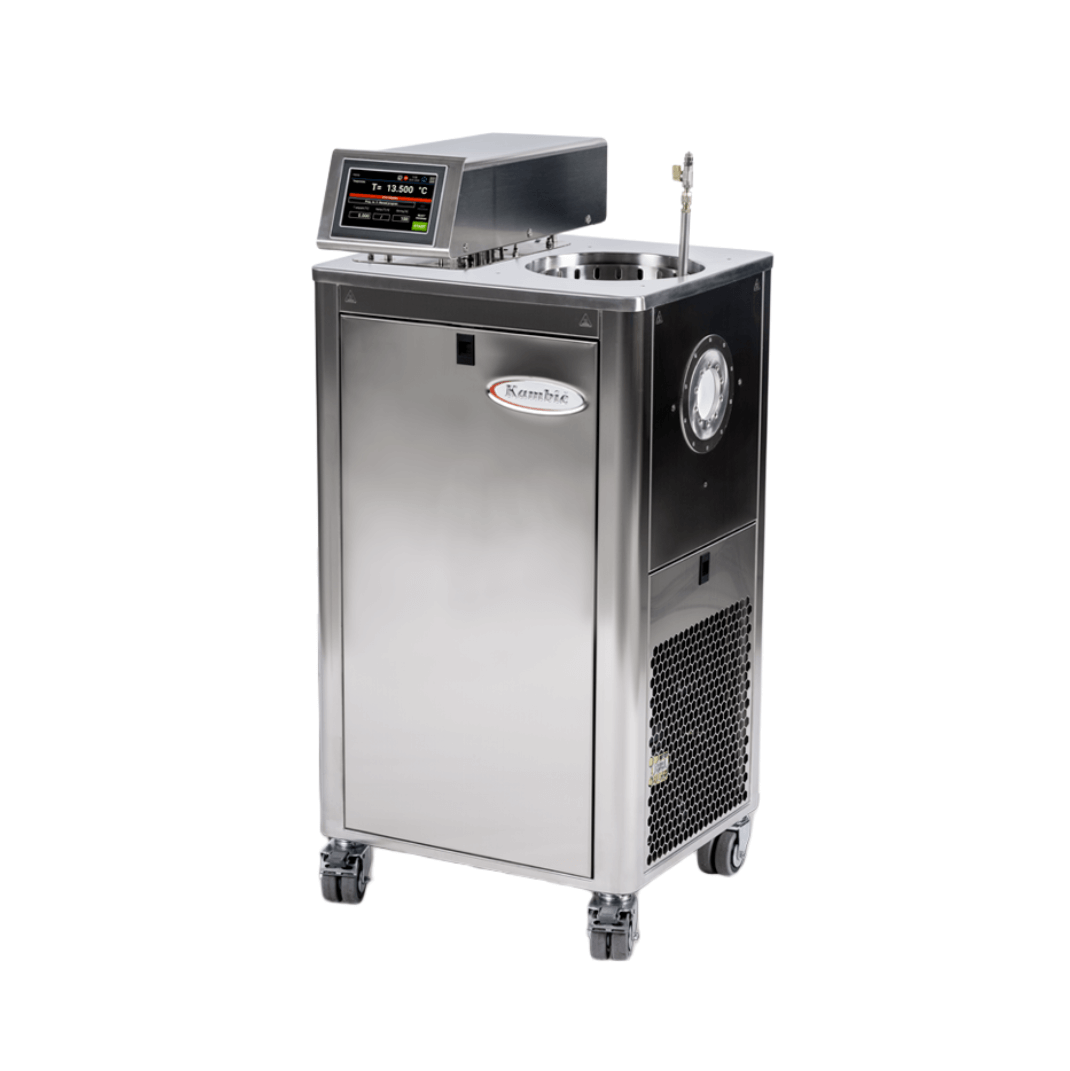

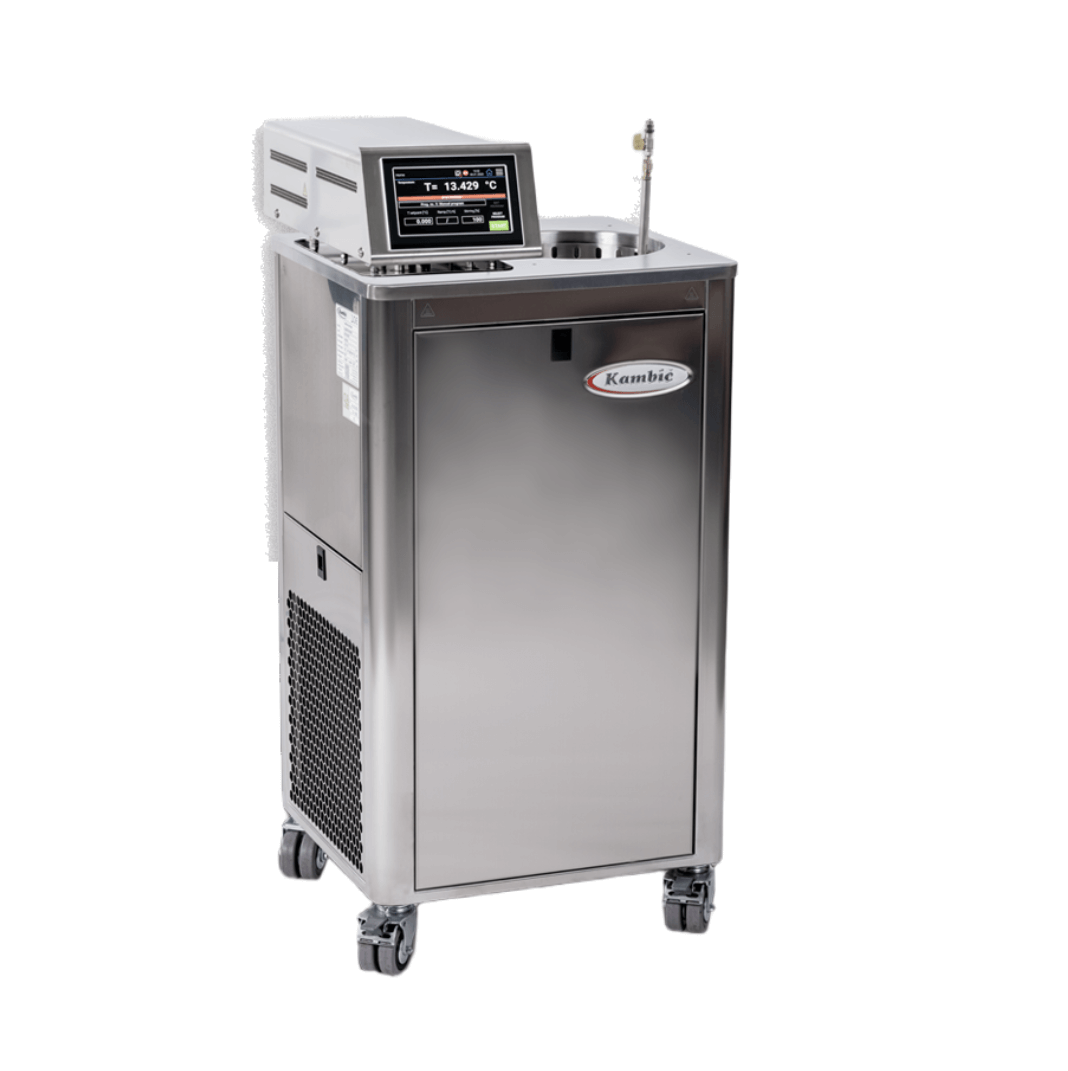

Calibration Baths Black Body Cavity Ready
OB-15/2 BB & OB-15/2 BBLT
Temperature range: – 20 °C …+ 250 °C
| Perfect solution for calibrating IR thermometers and other thermographic equipment |
| Various shapes Black Body Cavities available |
| Uniformity and stability in mK range |
| Fluid ensures perfect heat transfer |
| Unique vertical flow design |
| Metrology performance |
| Two temperature ranges available |
| State of the art solution |
Specifications
Downloads
| Technical Data | Non Contact Thermometer Calibrator | Non Contact Thermometer Calibrator | Calibration Baths Black Body Cavity Ready | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | OB-15/2 | OB-15/2 | OB-15/2 BBLT | |||||||||||||||||
| External dimensions (WxHxD) [mm] | 534 x 545 x 474 | 530 x 1090 x 470 | 530 x 1090 x 470 | |||||||||||||||||
| Internal dimensions (diameter x immersion depth) [mm] | Ø 225 x 270 | Ø 225 x 270 | Ø 225 x 270 | |||||||||||||||||
| Volume [L] | ~ 15 | ~ 15 | ~ 15 | |||||||||||||||||
| Fluid quantity for operation [L] | 20 | 20 | 20 | |||||||||||||||||
| Temperature range [°C] | + 30 °C …+ 130 °C * (0 °C … 130 °C when connected to a circulating cooler) | + 40 … + 250 | - 20 … + 130 | |||||||||||||||||
| Temperature display resolution [°C] | 0.001 | 0.001 | 0.001 | |||||||||||||||||
| Temperature set resolution [°C] | 0.001 | 0.001 | 0.001 | |||||||||||||||||
| Temperature stability [°C] | ± 0.002 @ 30 °C ± 0.002 @ 37 °C ± 0.002 @ 50 °C ± 0.003 @ 70 °C ± 0.003 @ 100 °C | ± 0.003 @ 100 °C | ± 0.006 @ - 20 °C ± 0.005 @ 0 °C ± 0.003 @ 100 °C | |||||||||||||||||
| Temperature uniformity [°C] | ± 0.007 | ± 0.007 @ 100 °C | ± 0.007 @ -20 °C | |||||||||||||||||
| Heating rate | ~ 1 hour (+ 40 °C …+ 100 °C) | ~ 1 hour (+ 40 °C …+ 100 °C) | ~ 1 hour (+ 20 °C …+ 100 °C) | |||||||||||||||||
| Cooling rate | N/A (natural cooling) | N/A (natural cooling) | ~ 0,5 hour (+ 20 °C …- 20 °C) | |||||||||||||||||
| Temperature Control | PID | PID | PID | |||||||||||||||||
| Noise level [dBA] | < 48 | < 48 | < 58 | |||||||||||||||||
| Cooling | Natural cooling * (Ready for connection to a circulating cooler) | Natural cooling | Compressor Cooling System | |||||||||||||||||
| Power supply | 230 V 50/60 HZ (± 10 %) | 230 V 50/60 HZ (± 10 %) | 230 V 50/60 HZ (± 10 %) | |||||||||||||||||
| Wattage [W] | 1100 | 1100 | 2500 | |||||||||||||||||
| Interface | Ethernet, USB | Ethernet, USB | Ethernet, USB | |||||||||||||||||
| Weight [kg] | ~ 41 | ~ 63 | ~ 88 | |||||||||||||||||
